Flexible pavement design in Rancho Cucamonga starts with Chapter 3 of the AASHTO 1993 Guide and gets refined by Caltrans HDM Section 608. The city sits on the Cucamonga alluvial fan, where granular deposits from the San Gabriel Mountains meet the silty clays of the inland valley. That transition zone creates subgrade variability that a generic county table cannot capture. We see CBR values jump from 3 to 15 within a hundred feet on some commercial lots off Foothill Boulevard. A mechanistic-empirical approach, supported by resilient modulus testing and Hveem or Superpave mix verification, gives the owner a structural number that matches real traffic loading, not just a default ESAL assumption. For projects with heavy truck staging, we also tie the design to a CBR road test to confirm the in-situ strength before finalizing layer thicknesses.
A pavement is only as good as the subgrade beneath it. On the Cucamonga fan, that means testing for expansive clay before you spec any asphalt.
Scope of work
Our lab also checks for sulfate content in the soil before specifying any cementitious stabilization, because sulfate-induced heave can destroy a pavement from below.
Key design parameters we control:
- Structural Number (SN) calculated from layer coefficients and drainage factors.
- Hot Mix Asphalt (HMA) thickness verified through temperature gradient analysis for the Inland Empire climate.
- Unbound aggregate base gradation checked against Caltrans Class 2 or Class 3 specs.
- Prime coat and tack coat selection matched to the ambient temperature window during construction.
Area-specific notes
A Rancho Cucamonga retail center on Foothill Boulevard opened with half-inch surface depressions in the parking lot after just one rainy season. The original design had skipped a subgrade stabilization step and relied on a uniform CBR of 10 across the site. Under the stormwater retention basins, the soaked CBR dropped below 3 in the silty areas, and the 4-inch asphalt section failed in fatigue cracking within eighteen months. The repair cost exceeded the original pavement line item by 40 percent.
That case illustrates the risk of ignoring seasonal moisture variation on the Cucamonga fan. A design that works on dry August soil can fail on saturated February subgrade. We always run soaked CBR and moisture conditioning on the resilient modulus samples to capture the worst-case scenario before the first truck rolls.
Standards used
AASHTO 1993 Guide for Design of Pavement Structures, Caltrans Highway Design Manual (HDM) Section 608, ASTM D1883 (CBR), ASTM D2844 (R-value), AASHTO T 307 (Resilient Modulus), AASHTO M 323 (Superpave)
Linked services
Subgrade Evaluation for Pavement
We sample and test the upper 3 feet of subgrade for CBR, R-value, resilient modulus, sulfate content, and Atterberg limits. The report includes soaked and unsoaked conditions and a chemical stabilization analysis if the soil requires treatment.
Pavement Section Design & Layer Optimization

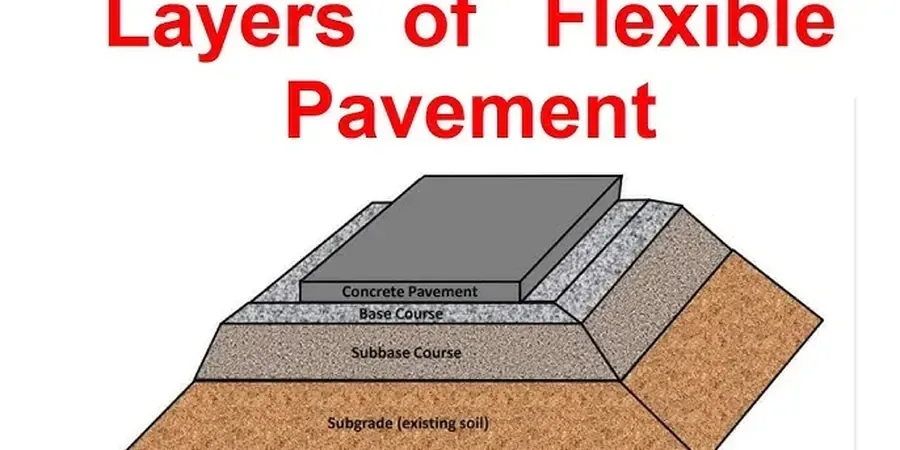

We calculate the Structural Number for the design ESALs, then optimize the asphalt, base, and subbase thicknesses to meet performance criteria. Output includes a construction specification sheet with compaction targets and gradation bands.
Typical parameters
Common questions
What does a flexible pavement design cost in Rancho Cucamonga?
For a typical commercial or industrial site in Rancho Cucamonga, the combined subgrade investigation and pavement section design runs between US$1,620 and US$5,610. The range depends on the number of borings, the extent of lab testing (CBR, R-value, resilient modulus, sulfate), and whether you need a CalME rehabilitation analysis.
How deep do you test the subgrade for a parking lot design?
We test to a depth of at least 3 feet below the proposed subgrade elevation. In Rancho Cucamonga, where the silty clays of the Soboba series often extend several feet deep, we may go to 5 feet if we suspect a weaker layer that could influence long-term rutting.
Do you use the AASHTO 93 method or the newer mechanistic-empirical approach?
We can use either, depending on the project. The AASHTO 1993 method works for most commercial pavements and is accepted by local agencies. For heavier traffic or rehabilitation, we use CalME, which is a mechanistic-empirical tool calibrated for California materials and climate. Both rely on the same field and lab data we collect.
