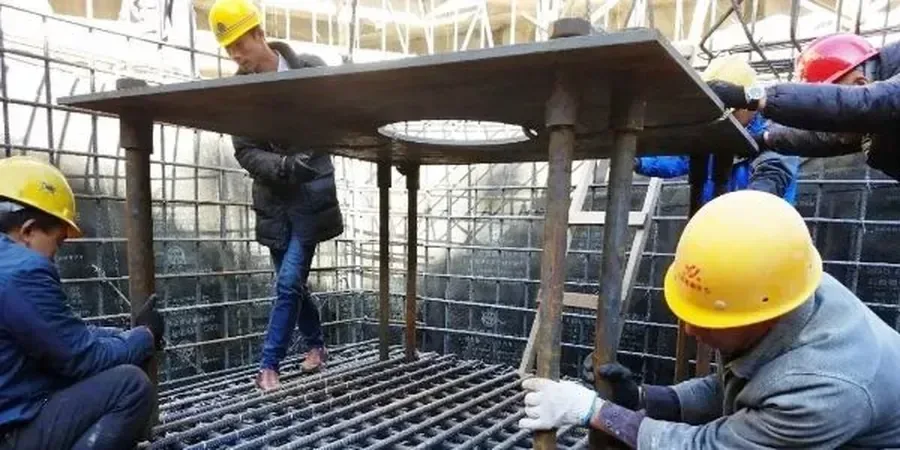

Rancho Cucamonga grew fast after the 210 freeway opened, pushing residential tracts right into the alluvial fans of the San Gabriel Mountains. That rapid sprawl placed critical buildings on loose sandy soils that behave unpredictably during a rupture on the San Andreas or San Jacinto fault. The city sits at a 34.1° latitude in a seismically active corridor where peak ground acceleration can exceed 0.9g in a design-level event. Base isolation seismic design decouples a structure from that ground motion, using elastomeric or sliding bearings to absorb displacement instead of transmitting it upward through the frame. For commercial and essential facilities projects here, analyzing site-specific response spectra through seismic microzonation informs the isolator properties, and we cross-check subgrade conditions with CPT testing to confirm that bearing capacity under the isolation plane won’t compromise the system.
A properly tuned isolation system shifts the structure’s period past 2.5 seconds, cutting base shear by 60 to 80 percent compared to a fixed-base design.
Scope of work
Area-specific notes
Running an isolation system analysis starts with the shaking table and bearing test rig data we pull from manufacturer catalogs, but the real work happens in the soil-structure interaction model. We build a 3D finite element mesh of the isolation plane, place the bearings at column locations, and run a suite of seven or more ground motion pairs scaled to the Rancho Cucamonga target spectrum. The bearings are modeled with nonlinear hysteretic behavior: bilinear for lead-rubber, friction-pendulum elements for sliding types. If the site has a slope as gentle as 3 percent, the permanent displacement under MCE can drift the isolators beyond their moat clearance, so we check residual drift explicitly. The moat wall impact force is another local concern—Rancho Cucamonga’s near-fault pulses demand wider clearances than code minimums suggest. We verify all this with nonlinear time-history analysis, not just the equivalent lateral force procedure, because the city’s seismic environment doesn’t forgive shortcuts.
Standards used
ASCE/SEI 7-16 Minimum Design Loads and Associated Criteria for Buildings and Other Structures, ASCE/SEI 7-16 Section 17: Seismic Design Requirements for Seismically Isolated Structures, IBC 2021 Section 1705: Required Verification and Inspection, ASTM D7400 Standard Test Methods for Full-Scale Bearing Tests, AASHTO Guide Specifications for Seismic Isolation Design
Linked services
Site-Specific Ground Motion Development
Probabilistic and deterministic seismic hazard analysis for the Cucamonga fault zone, generating uniform hazard spectra and spectrally matched time histories.
Nonlinear Time-History Analysis
Full 3D modeling of the superstructure-isolation-foundation system with FNA or direct integration methods for MCE-level verification.
Isolator Characterization and Specification
Effective stiffness and damping parameters for LRB, HDR, and FPS bearings, including property modification factors for aging, temperature, and scragging.
Peer Review and Plan Check Support
Technical documentation packages for Rancho Cucamonga Building and Safety plan review, addressing drift ratios, moat wall details, and uplift restraint.
Typical parameters
Common questions
What does base isolation seismic design cost for a Rancho Cucamonga project?
Engineering fees for base isolation design and analysis typically range from US$3,880 to US$8,180 depending on structural complexity, number of isolators, and the level of peer review required by the city. This covers the nonlinear time-history modeling, ground motion selection, and the design report package. Isolator prototype testing and special inspection costs are separate.
Does Rancho Cucamonga require site-specific ground motions for base isolation?
Yes. The city’s proximity to the San Andreas and San Jacinto faults means ASCE 7-16 Section 21 site-specific procedures apply. We develop target spectra accounting for near-fault directivity effects, which generic code spectra do not capture. The Building and Safety division expects this level of analysis for essential facilities and Risk Category III and IV structures using isolation.
How do you test whether the soil can support an isolation plane?
We run in-situ shear wave velocity measurements with MASW or downhole methods to classify the site per ASCE 7-16. Then we verify bearing capacity beneath the isolation interface with CPT soundings and lab testing on undisturbed samples. If the upper soils are liquefiable, we design Improvement under the isolation plane so the bearings sit on stable, densified material.
